Subrack 90 ADJ

Adjustable Series

An extremely versatile card rack with total flexibility for adjustment.  The bars are sturdy and when assembled the Subrack 90 Model ADJ is a very rigid rack that fits into 19″ cabinetry or can be used as a stand-alone rack.  The rack is attractively clear iridited.

Standard single high Subrack 90 Model ADJ consists of the following parts:

• (2) Extractor Bars
• (2) Support Bars (11.5″ deep cages may use four bars)
• (2) Connector Bars
• (2) Connector Bar Spacers
• (2) End Plates
• (2) Mounting Flanges

Order card guides separately.

Card racks are normally shipped unassembled.

HOW TO ORDER INDIVIDUAL PARTS FOR SUBRACK 90 MODEL ADJ

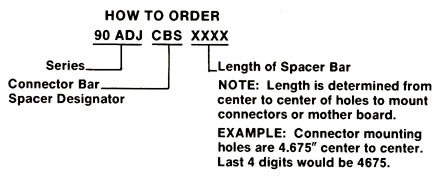

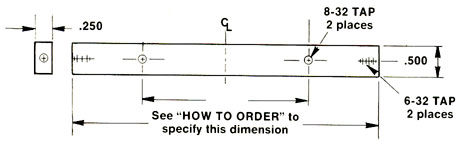

CONNECTOR BAR SPACER

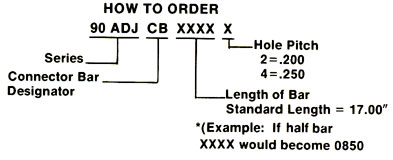

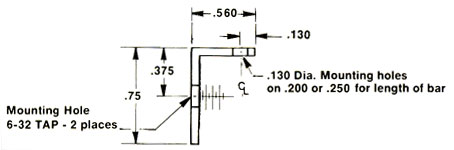

CONNECTOR BAR

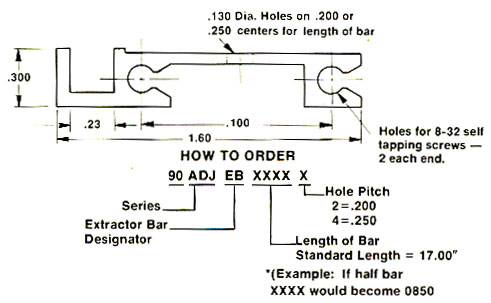

EXTRACTOR BAR

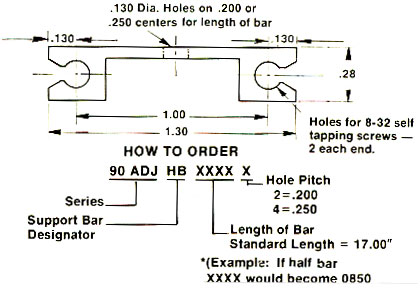

SUPPORT BAR

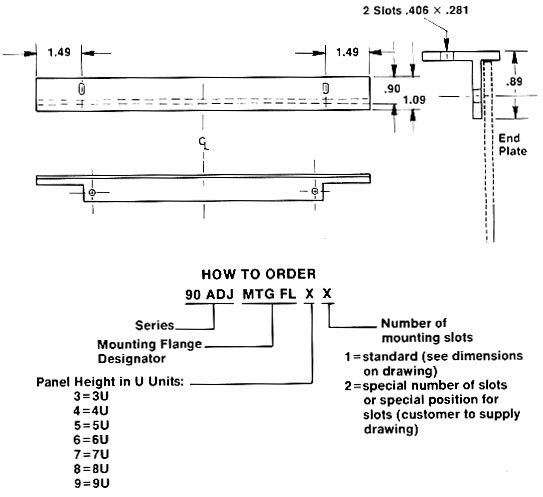

MOUNTING FLANGES

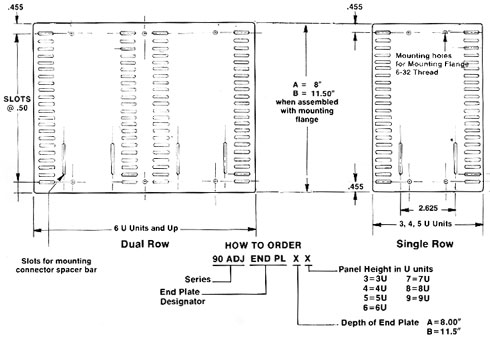

END PLATES

SUBRACK 90 MODEL ADJ

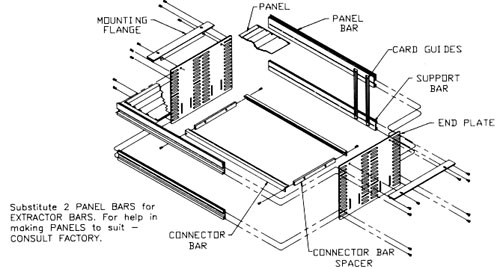

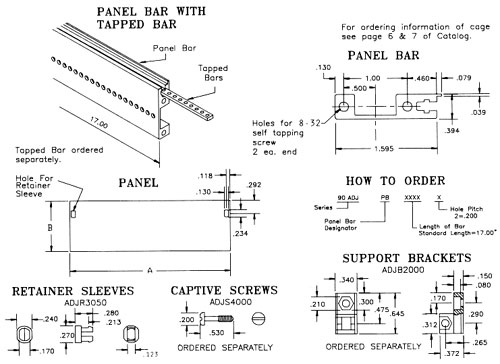

CUSTOMIZE WITH FRONT PANELS
