SERIES 4700 Card Guide
The Series 4700 UNITRACK Card Guides incorporate the patented spring finger action of UNITRACK Card Guides to accommodate p.c. cards up to 6″ long! Now “big” boards can be held with the card guide that provides vibration and shock damping for p.c. cards 1/16″ to 1/8″ thick. Dimensionally stable polycarbonate plastic segments are simply slid into the guide bar to make any length card guide needed. Mounting clips lock the segments within the guide bar, as well as provide a positive mounting method. Other special mounting arrangements are available, such as bonding, riveting, etc…
Series 4700 UNTIRACK Card Guides are available as assemblies to exact lengths or as individual parts to be assembled by the customer. Although many large p.c. cards are mounted to a solid chassis, the rigid guide bar makes it possible to easily span open spaces.

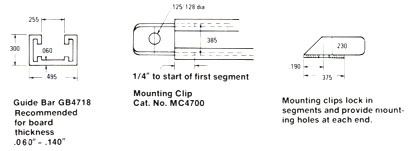

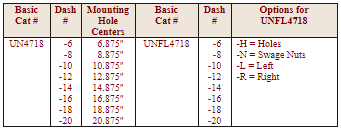

Length of Guide bar is 1/2″ longer than Dash #. Mounting hole dimensions are .875″ longer than Dash #.
UN4718-14 would be an assembled unit of: (1) GB4718 14.5″ long; SG4700 segments and (2) MC4700 mounting clips. Mounting hole dimensions would be 14.875″.
Standard spacing of holes, studs or swage nuts.
- Guides up to 6″ long: 2 holes, 2 studs or 2 swage nuts spaced 1/2″ from each end of the guide.
- Guides up to 10″ long: 3 holes, 3 studs or 2 swage nuts evenly spaced with the end holes or hardware 1/2″ from each end of the guide.
- Guides over 10″ long: 4 holes, 4 studs or 4 swage nuts evenly spaced with the end holes or hardware 1/2″ from each end of the guide.

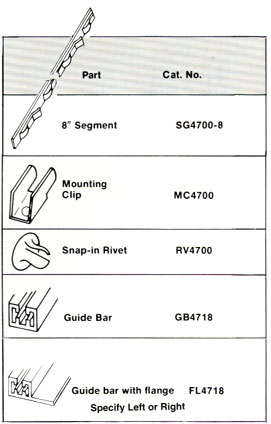

Guide Bar FL4718 Guide bar with flange (Specify holes -H or flange nuts -N). Recommended for board thickness .060″ – .140″.
