Slotted Card Guides

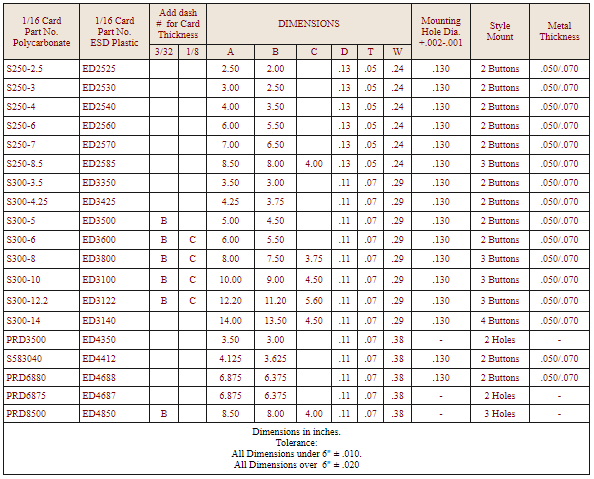

SERIES 250, 300, 400
Series 250 guides mount on .250″ centers.
Series 300 guides mount on .300″ centers.
|

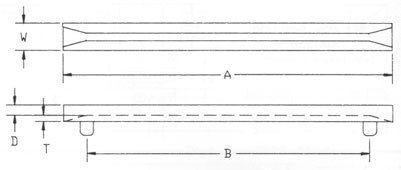

S250 – 2.5 |
S250 – 3 |
S250 – 4 |
|
|
S250 – 6 |
S250 – 7 |
S300 – 3.5 |
|
|
S300 – 4.25 |
S300 – 5 |
S300 – 6 |
|

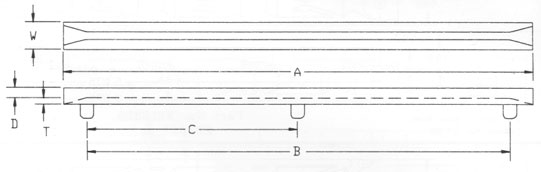

S250 – 8.5
S300 – 8
S300 – 10
S300 – 12.2

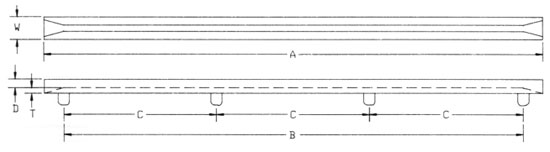

S300-14

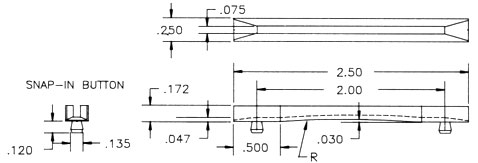

NYLON SLOTTED P.C. CARD GUIDES
GV2000 Molded Nylon
Button mounts in .130″ (± .003 – .000) diameter hole in .060″ to .070″ thick metal. Suggest rear hole / holes be slotted to compensate for thermal expansion.
Integral snap-in buttons are designed for quick, easy assembly of guides to the chassis or frame and hold the guide firmly in place.
Series GV made from molded nylon.
